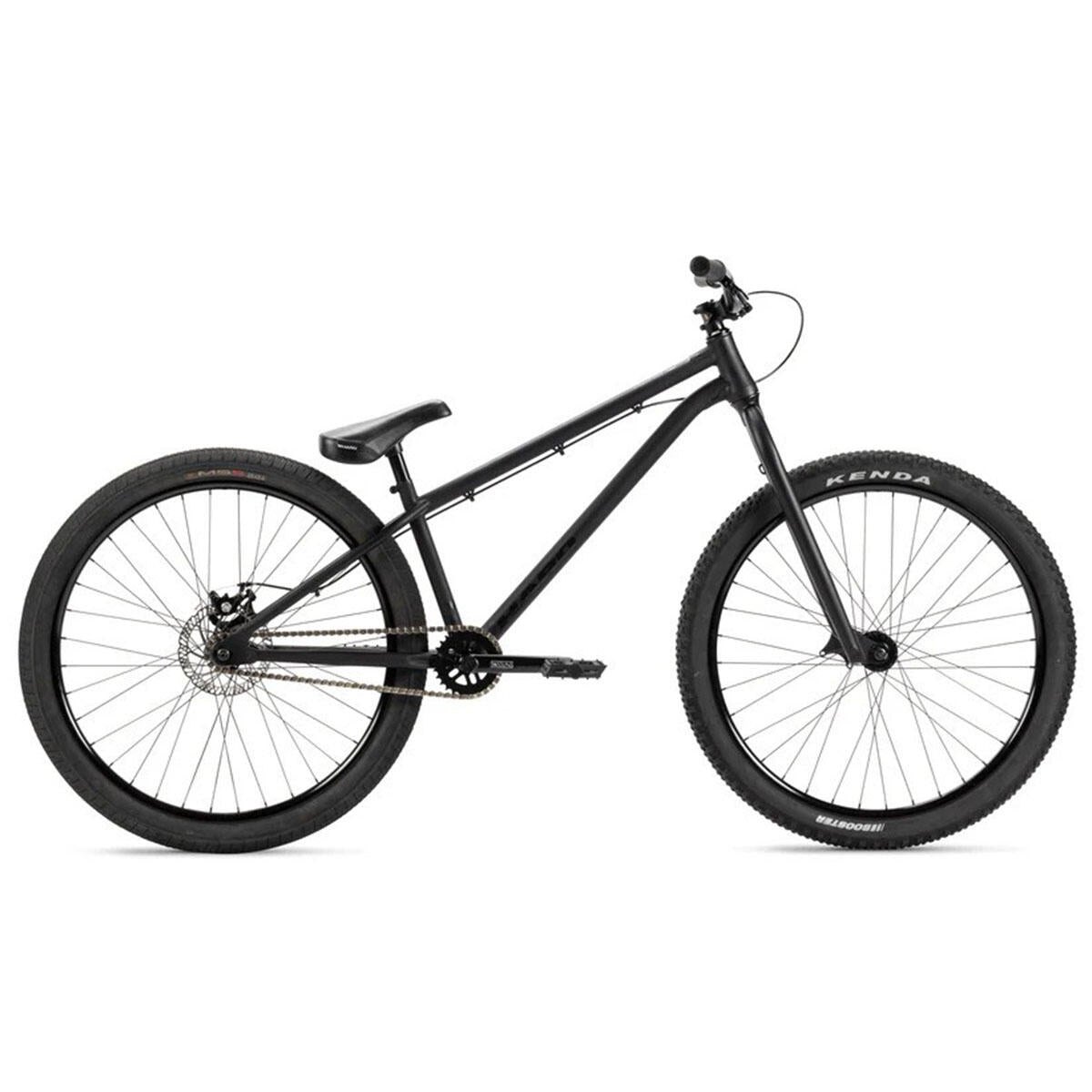

HARO STEEL RESERVE 1.1 DIRT JUMPER

Meet the new Steel Reserve. Our all-new series of dirt jumpers built from the ground up to go sky-high, the SR1 gets you into the game with BMX-inspired feels. Start with an all-chromoly frame with a tapered, integrated head tube to house the rigid, chromoly fork for stiff, responsive control on all terrains. All these council built jumps are so smooth you dont need heavy suspension forks anyway. Haro 3-piece chromoly cranks spin on a sealed Euro bottom bracket. Sealed bearings all around, double-wall rims and a Tektro disc brake bring it on home. For the skatepark, pump track or roasting big sets, the Steel Reserve 1 is ready to go.

FEATURES

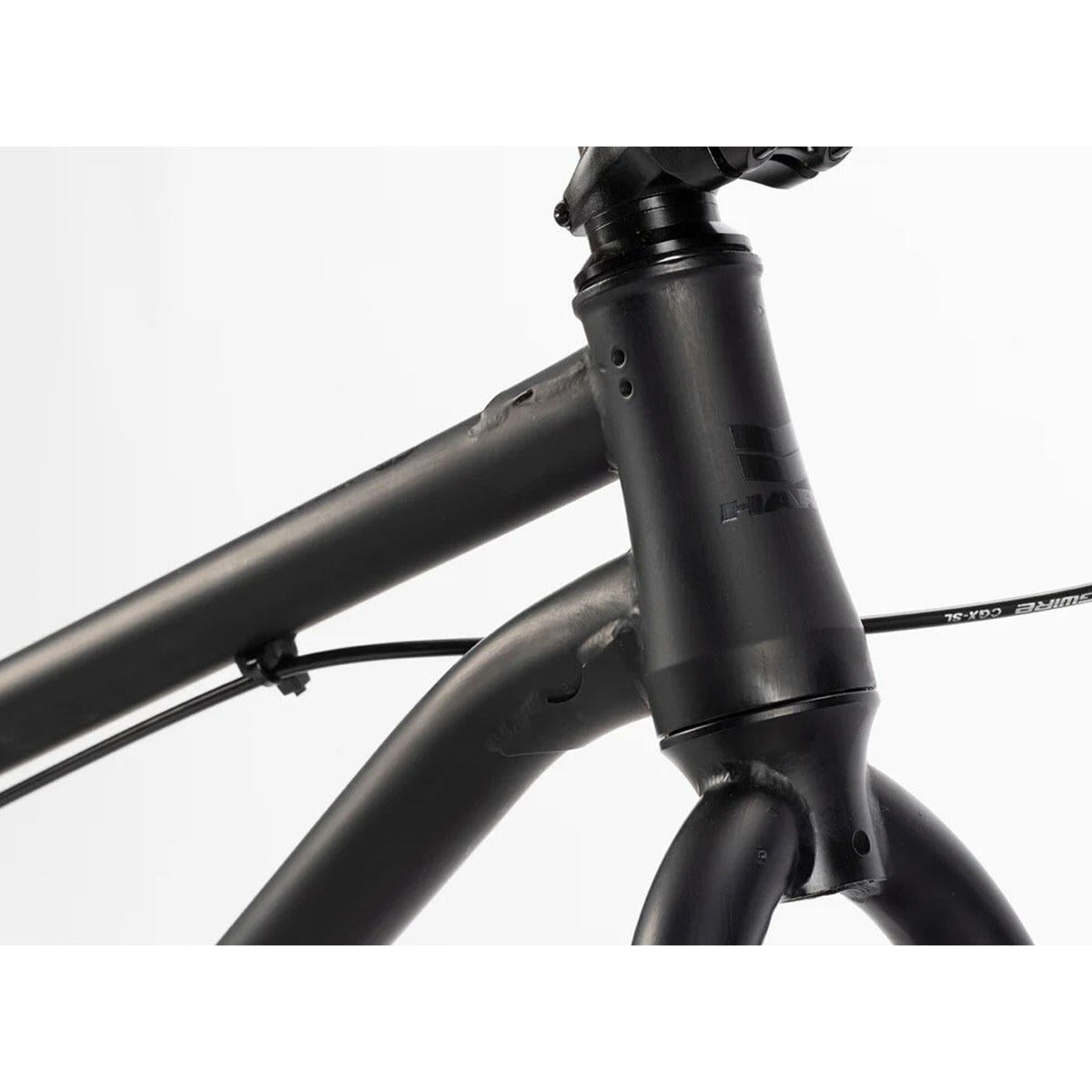

Full chromoly frame w/ Integrated HT, Euro bottom bracket
1 1/8" - 1 1/5" Threadless Full chromoly Fork w/ One Piece CNC Internally Threaded Steerer Tube & Tapered Legs
Haro Baseline 3-pc chromoly 8 Spline 165mm
28/14
Baseline Halflink Chain
Alloy 6061 PG; 50mm rise; 35mm bore; 780w; 9° back; 5° up
Premium "CK" Grips
26", 36 Hole Alloy, Double Wall, Pinned 30 Inner Width
Front - 26x2.4" Kenda booster / Rear - 26x2.35" Haro MS5
Tektro Mechanical Disc Brake 160mm Rotor

FRAMESET
Frame 100% Chromoly frame with integrated headtube, Euro BB
Fork 100% Chromoly One Piece CNC'd 1 1/8" - 1.5" Internally Threaded Steerer Tube, Tapered Legs
DRIVETRAIN
Cranks Baseline 8 Spline 165mm
Pedals Polycarbonate
Chain Baseline Chain
Bottom Bracket Double row sealed bearing euro BB
WHEELS
Tires Front - 26x2.4" Kenda booster, Rear - 26x2.35" Haro MS5
Wheels/Rims 26", 36 Hole Alloy, Double Wall, Pinned 30mm Inner Width

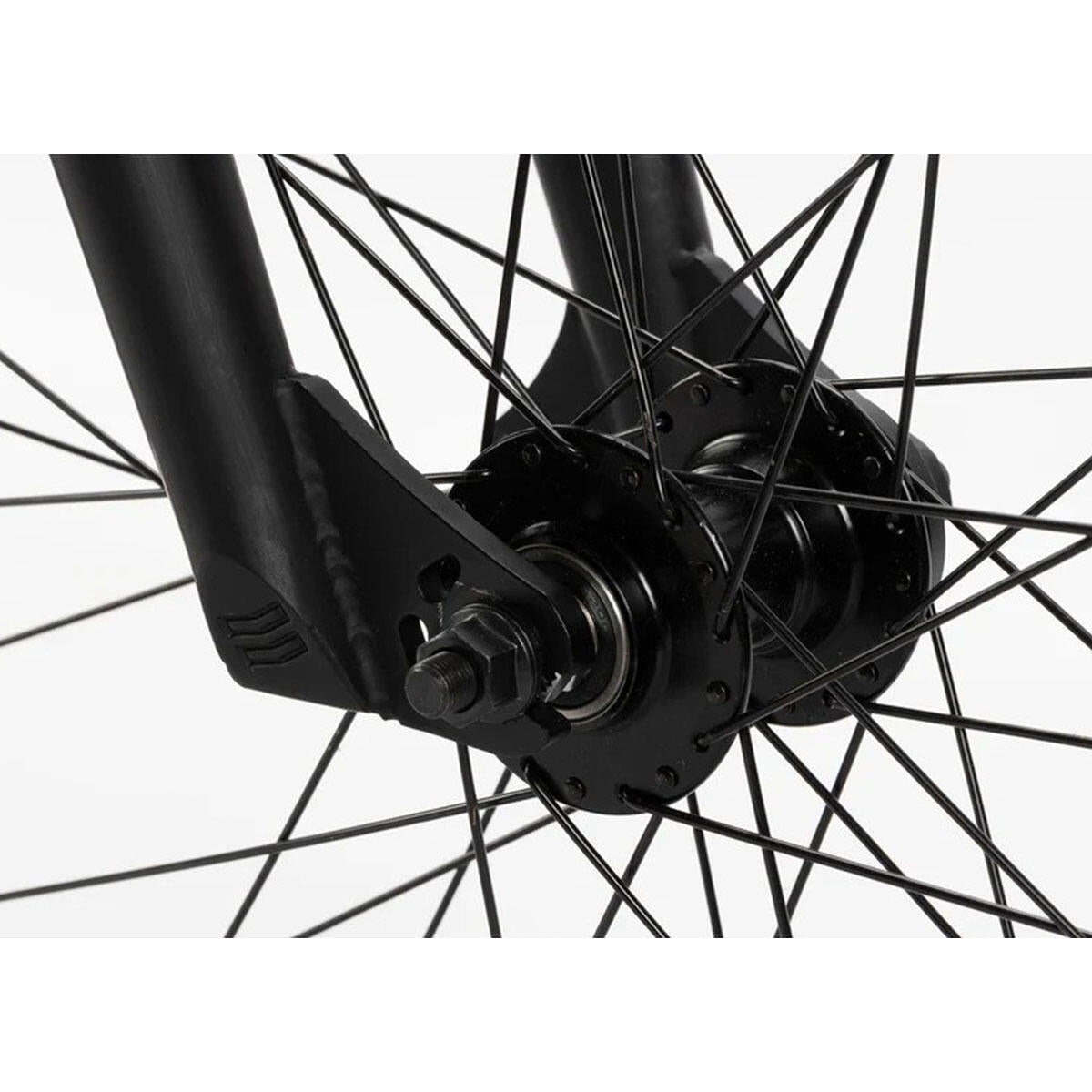

Front Hub Alloy double row sealed bearing 3/8" axle
Rear Hub Alloy sealed Cassette
BRAKING SYSTEM
Brakes Tektro Mechanical Disc 160mm Rotor
OTHER COMPONENTS
Grips/Tape Premium "CK" Grips
Handlebar 6061 Aluminum 50mm rise, 35mm clamp, 780mm width, 9° back, 5° up
Stem Aluminum 50mm reach, 35mm clamp
Headset FSA 45° X 45° ACB Sealed 1-1/8" - 1.5"

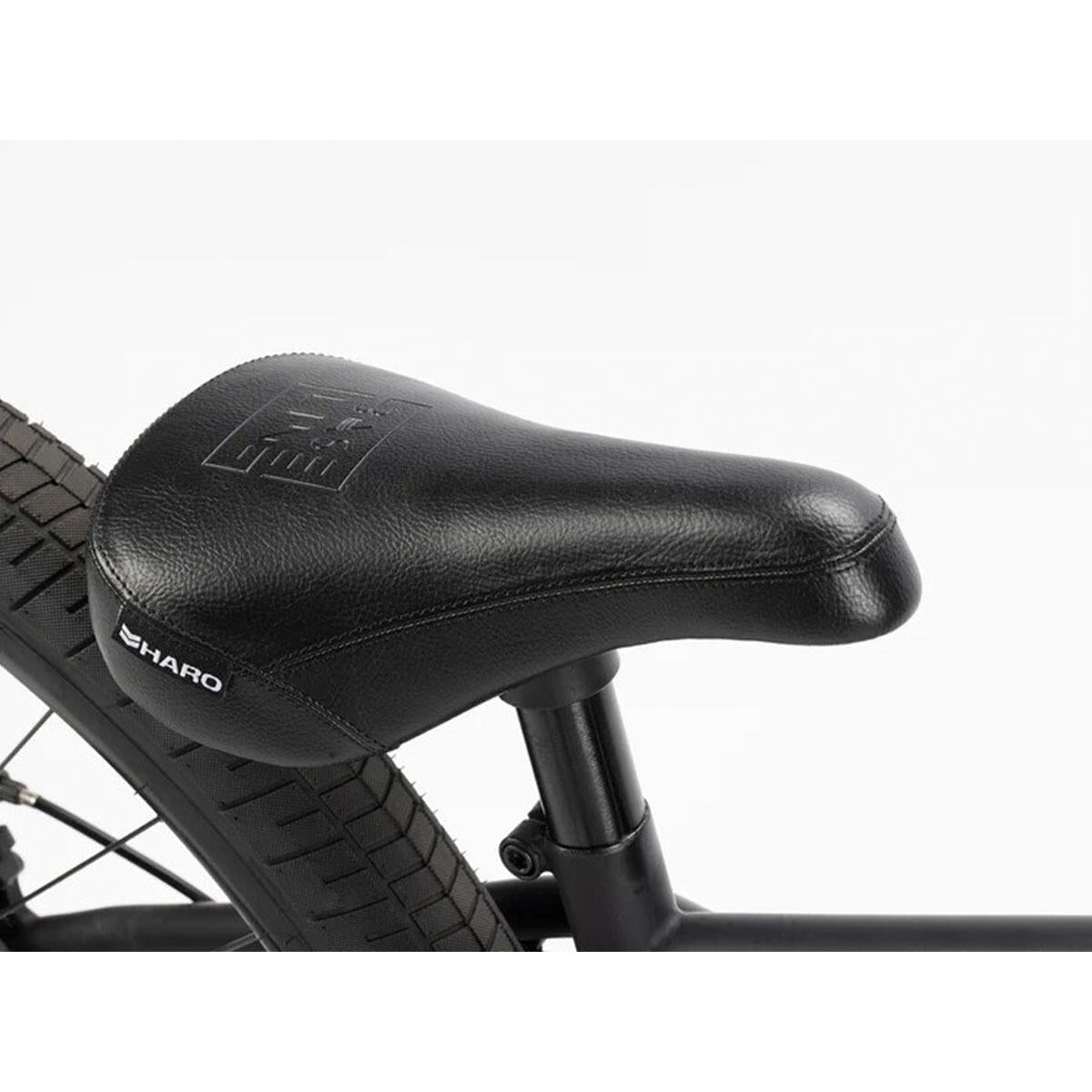

Saddle Baseline 2 Piece
Seat Post 27.2 Alloy Pivotal
Seat Clamp Integrated

SIZE
Seat Tube (C-T) 320mm
Top Tube (Effective) 586.5mm
Head Tube Angle 69°
Seat Tube Angle 67.5°
Chainstay Length 399mm
BB Drop 17.5mm
Wheelbase 1064.5mm
Head Tube Length 112mm
Reach 415mm
Axle to Crown 478mm
Fork Offset 40mm
